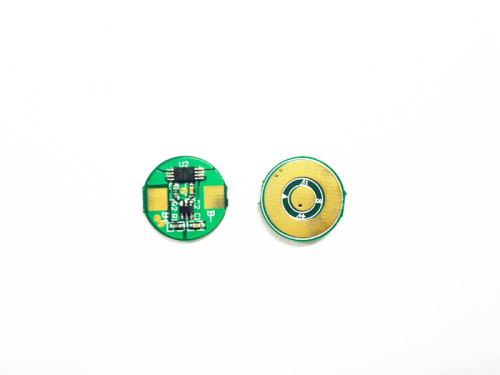

Enlarge Battery Protection Circuit Board for 3.7V Single Cell Pack

Battery Protection Circuit Board for 3.7V Single Cell Pack

Price: 0.5~0.8 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Henan, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ZFA06LR-01
Production Capacity: 100000 pieces/week
Delivery Date: 3-5 days
Means of Transport: Air;Express
Packing: Carton

The PCM/PCB (protection circuit module or board) is the heart of the lithium battery pack, protecting battery from overcharging, over discharging, etc


No.
Test item (25℃)
Criterion
1
Overcharge protection voltage for single cell
4.275 ± 0.025V
2
Over discharge protection voltage for single cell
2.50 ± 0.08V
3
Over current protection current during discharging
3.0A
Over current protection current during charging
2.5A
4
Current consumed in normal operation
< 3.5uA
5
Current consumed in sleeping mode
< 0.1uA
6
Short circuit protection
Yes
7
Interior resistance
< 52mΩ
8
Size(D: diameter; T: thickness)
D:17mm; T:2.3mm
