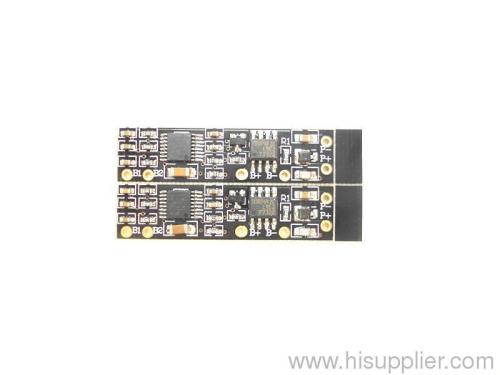

Protection Circuit Module (PCB) for 11.1V Li-Ion Battery Pack ( 3.0A Limit)

Price:	3.0~4.5 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZFC03LR-03A

Production Capacity: 100000pcs/week

Delivery Date: Within 1 day

Means of Transport: Ocean,Land,Air

Packing: Carton

All Li-Ion Battery packs must connect to a protection circuit module to protect Li-Ion Battery from over charge, over discharge and prevent accident.

Li-Ion and Li-Poly battery packs should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. Battery Junction does not provide engineering support for these items, so make sure you've got professional assistance!

No.	Test item (25℃)	Criterion
1	Overcharge protection voltage for single cell	4.275 ± 0.025V
2	Over discharge protection voltage for single cell	2.30 ± 0.08V
3	Over current detect voltage	0.13 ± 0.03V
4	Current consumed in normal operation	30uA
5	Current consumed in sleeping mode	0.1uA
6	Over current protection current during discharging	4A
7	Over current protection current during charging	3A
8	Over current protection time	20mS
9	Short circuit protection time	0.4uS
10	Interior resistance	75mΩ
11	Working temperature	-20 – 55℃
12	Size	10x 40 x 3.0mm
